SNI-Changer-using-Mitm-Proxy is a tool that modifies the Server Name Indication (SNI) extension inside the TLS ClientHello message. It works by using a MITM proxy that intercepts the client’s connection and returns a user-created root certificate to the client. The proxy then opens a separate TLS connection to the target server and changes the SNI extension in that ClientHello. Once both connections are established, the proxy forwards data between the client and the server, relaying traffic in both directions.
What is the ClientHello message?
When a client (for example, a web browser) starts a secure HTTPS connection, it begins the TLS handshake by sending a ClientHello message. That message announces supported protocol versions, cipher suites, and other extensions (including SNI), essentially saying “hello, here’s what I support; let’s negotiate a secure session.”
What is SNI?
The Server Name Indication (SNI) is an extension in the ClientHello that tells the server which hostname the client wants to connect to. This is important when a single server hosts multiple domains with different TLS certificates. Without SNI, the server can only present a single certificate (typically the default site). SNI allows the server to choose the appropriate certificate for the requested hostname during the handshake.
Why change the SNI?
Modifying the SNI can be used to evade certain types of filtering and censorship. The paper Efficiently Bypassing SNI-based HTTPS Filtering explores techniques that change or abuse the SNI to bypass firewalls and other SNI-based filters. Some approaches discussed include:
- Bypassing based on backward compatibility: exploiting how servers handle legacy or fallback behaviors, by removing the SNI.
- Bypassing based on shared server certificates: using servers that present the same certificate for multiple hostnames to bypass filters.
Technologies Used
The tool was implemented in C using the OpenSSL library to handle TLS connections and generate certificates.
Example
When running the application, the proxy listens on port 8080. You can test its functionality using curl, which allows sending requests through a specified proxy. For example:
# The "--insecure" option ignores the fact that the root certificate
# is not recognized by the system. Remove this option if the certificate
# has been added to the system's root certificates.
curl https://www.example.com --proxy localhost:8080 --insecure -v
The application responds correctly to requests, establishing one TLS connection with the client (e.g., Firefox) and another with the destination server:
(debug) > NEW CONNECTION <
(info) Empty position: 0
(info) Connection fd: 4
(debug) Message sent!
(info) Creating a TLS connection:
(info) Hostname: www.example.com
(info) SNI: www.example.com
(info) Port: 443
(debug) SNI changed to: www.exampl3.com
(debug) Attempting handshake with www.example.com...
(debug) Handshake successful!
(debug) > CONNECTION ESTABLISHED <
(debug) Request sent from 4 to www.example.com!
(debug) Response sent from www.example.com to 4!
(debug) Response sent from www.example.com to 4!
(debug) Request sent from 4 to www.example.com!
(info) Connection closed (user-fd/host-fd[hostname]: 4/5[www.example.com]).

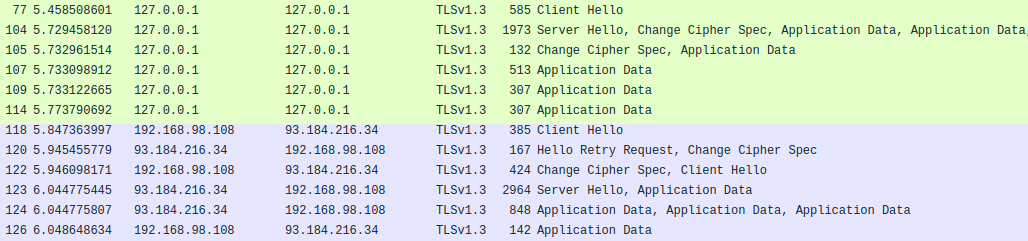

This behavior was verified using Wireshark. Figure 2 shows the first TLS connection in green and the second connection to the destination server in blue. Figures 3 and 4 illustrate the server_name in the TLS handshake: the original SNI (www.example.com) and the modified SNI (www.exampl3.com), respectively.
